3-Gang Toggle Switch
UL / ETL listed
Fits standard US boxes
30-day returns
1-year warranty
Trade or buying for a whole project? Designers, builders and electricians get 10% off plus volume pricing. Apply for a trade account.
Specifications
| Plate material | Solid brass, C260, 0.080" (2 mm) |
|---|---|
| Plate dimensions | 4.5" × 6.38" (standard 3-gang) |
| Gang spacing | 1.812" centre to centre (US standard) |
| Weight | Approx. 3.2 lbs |
| Electrical rating | 15A 125V AC, 60Hz per switch |
| Certification | UL/ETL listed mechanisms (file number on request) |
| Configurations | 3× Single Pole · 2× Single Pole + 3-Way · 3× 3-Way |
| Box compatibility | Standard US 3-gang, new work and old work, min. depth 2.25" |
| Screws | Six 6-32 brass screws, matching finish |
| Finishes | Unlacquered · Aged · Satin Brass |
| Warranty | 1 year, materials and workmanship |
Installation
- Turn off the breaker and confirm the circuit is dead with a tester.
- Remove the old switch and note which wire goes where; take a photo.
- Connect the wires to the marked terminals on the new mechanism (line, load, ground; travellers for 3-way / 4-way), following the printed guide in the box.
- Mount and align with the 6-32 brass screws supplied, restore power and test.
Swapping a switch is a common DIY job, but wiring must follow local code and we recommend a licensed electrician. Send a photo of your box to info@oxidehardware.com before ordering if anything looks non-standard.
Questions & answers
Returns & warranty
30-day returns on unused items in original packaging. Installed electrical products can't be returned unless defective. No restocking fees. Damaged or incorrect item? Email photos within 7 days and we replace it or refund it. One-year warranty on materials and workmanship.

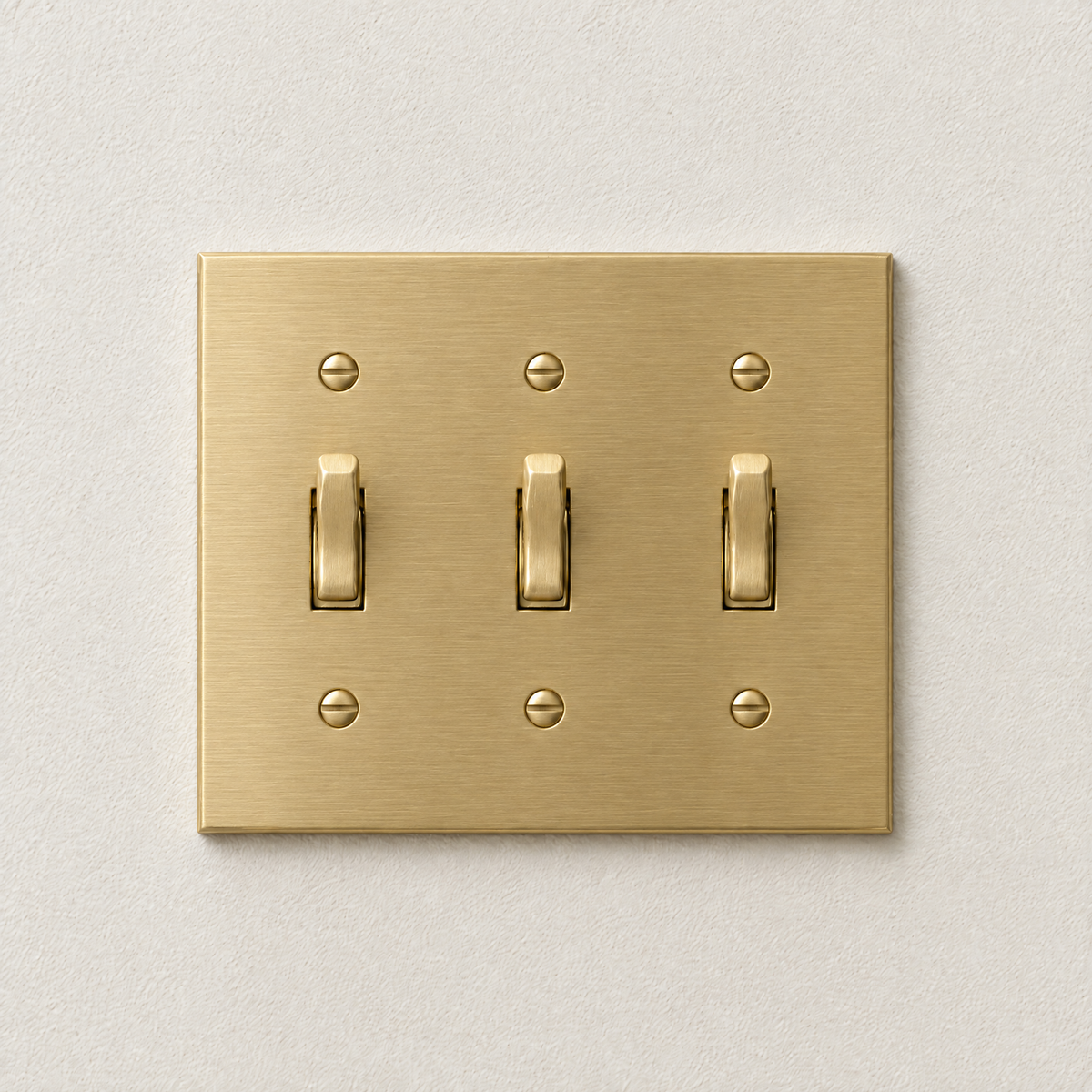

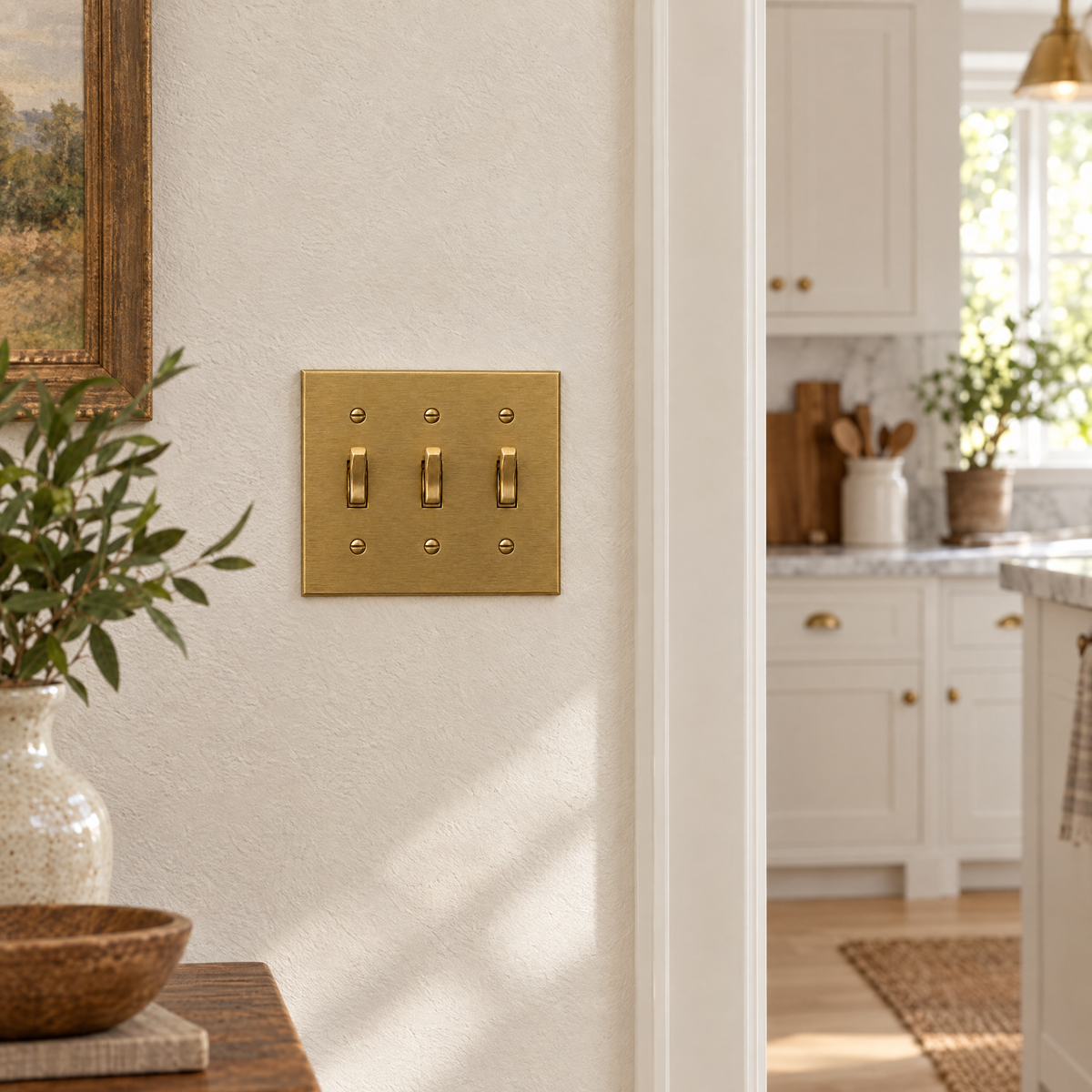

Three solid brass toggle switches on one plate, for a standard US 3-gang box. The kitchen wall, the entry, the spot where every renovation ends up with three plastic switches in a row. Plate machined from 0.080" brass, solid brass levers, three UL/ETL listed 15A mechanisms. Choose all single pole, all 3-way, or two single pole plus one 3-way.
- Solid brass plate and levers, approx. 3.2 lbs
- Three UL/ETL listed mechanisms, 15A 125V 60Hz each
- Fits standard US 3-gang boxes, new work and old work
- Configurations: 3× Single Pole · 2× Single Pole + 3-Way · 3× 3-Way
- Matching brass screws and printed install guide included
Buying for a whole project? Designers, builders and electricians get 10% off every product plus volume pricing. Apply for a trade account.

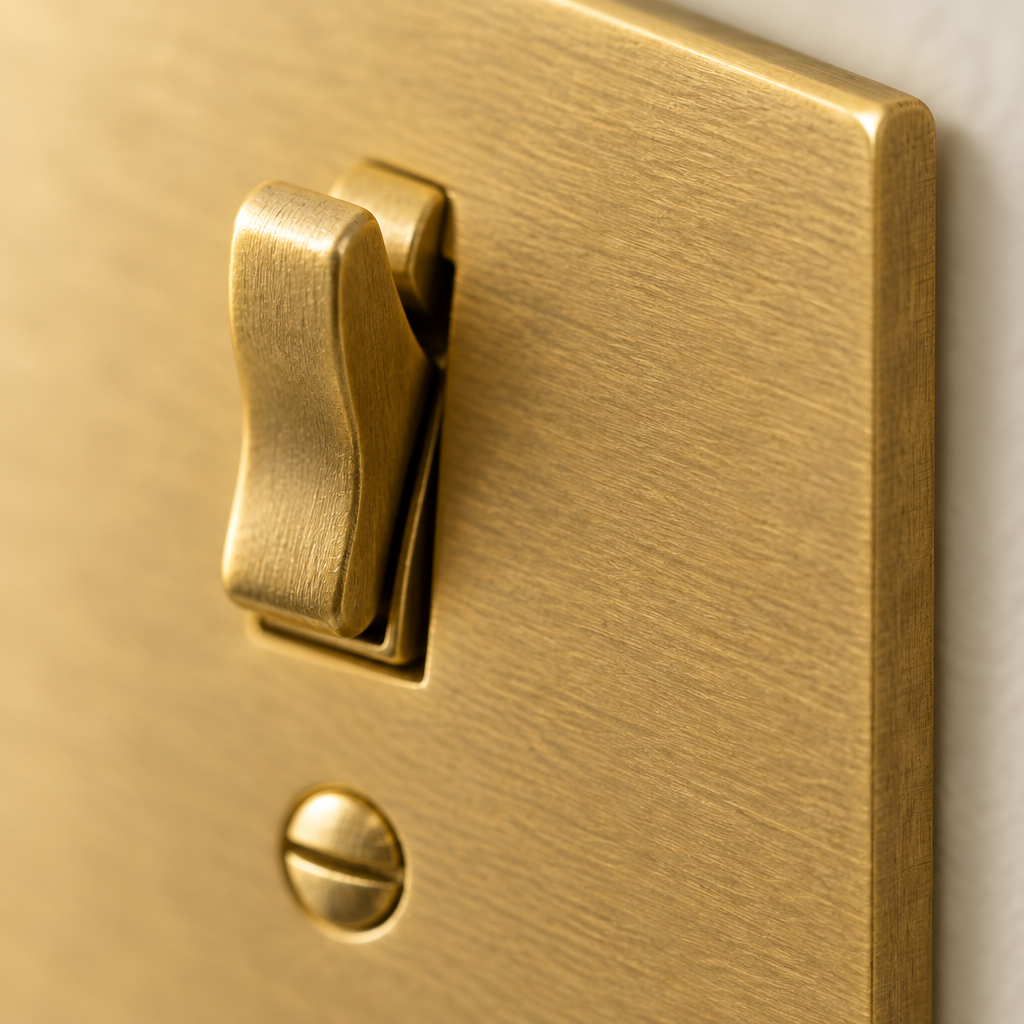

Why solid brass
Most "brass" switches are painted steel or plated zinc: a few microns of colour on a light base that chips at the screw holes and looks flat next to real metal. Ours are cut from 0.080" (2 mm) solid brass sheet, so the plate has the weight, the edge and the depth of colour that only solid metal gives. A magnet will not stick to it. It can be refinished decades from now. And the mechanism behind it is a UL/ETL listed component, not a decorative part, so it wires like any switch your electrician has fitted before.
What's in the box
- 1 solid brass 3-gang plate with three toggle mechanisms assembled
- 6 × 6-32 brass mounting screws, matching finish
- Printed wiring and installation guide
Need a different mix?
Any combination of single pole, 3-way and 4-way is possible, and so is a rotary dimmer in any position: see the 3-gang dimmer or build your own plate. Email us the layout left to right and we build it at the same price per switch.
Finish & care
Unlacquered Brass arrives bright and darkens where it is touched; that living patina is the point. Aged Brass is hand-darkened to a deep bronze tone and stays that way. Satin Brass is evenly brushed, pale and matte. Wipe unlacquered brass with a dry cloth only; aged and satin with a damp cloth. No polish, no chemicals. Every finish is made against the same master sample, so switches, plates and cabinet hardware ordered months apart still match.
Not sure which finish? The $25 finish sample set is credited back on your first order over $150.
Choose options
Why solid brass
What you are paying for
Swipe to compare →
| Oxide solid brass | "Brass" painted steel | Plated zinc | Plastic | |
|---|---|---|---|---|
| Material | Solid C260 brass, 0.080" (2 mm) | Steel, sprayed colour | Zinc alloy, thin brass plating | Nylon / thermoplastic |
| 1-gang plate weight | Approx. 0.35 lb | Approx. 0.12 lb | Approx. 0.2 lb | Under 0.05 lb |
| Magnet test | Does not stick | Sticks | Does not stick | Does not stick |
| How it ages | Patinas (unlacquered) or stays stable (aged, satin); can be refinished | Chips at the screw holes, shows steel underneath | Plating wears through at the touch points | Yellows, cracks |
| Edge and feel | Machined edge, cold to the touch, weight in the hand | Stamped edge, light | Cast edge, light | Moulded |
| Mechanism | UL/ETL listed, 15A | Varies | Varies | UL listed, 15A |
Weights are typical for a 1-gang toggle plate. Put a magnet on any "brass" plate before you buy it.
Three finishes, one master sample
Pick the finish, then match the whole house
Every switch, plate, knob and pull is offered in the same three finishes, made against the same master sample. Order the $25 sample set and hold them against your paint and your cabinets first; it is credited back on your first order over $150.

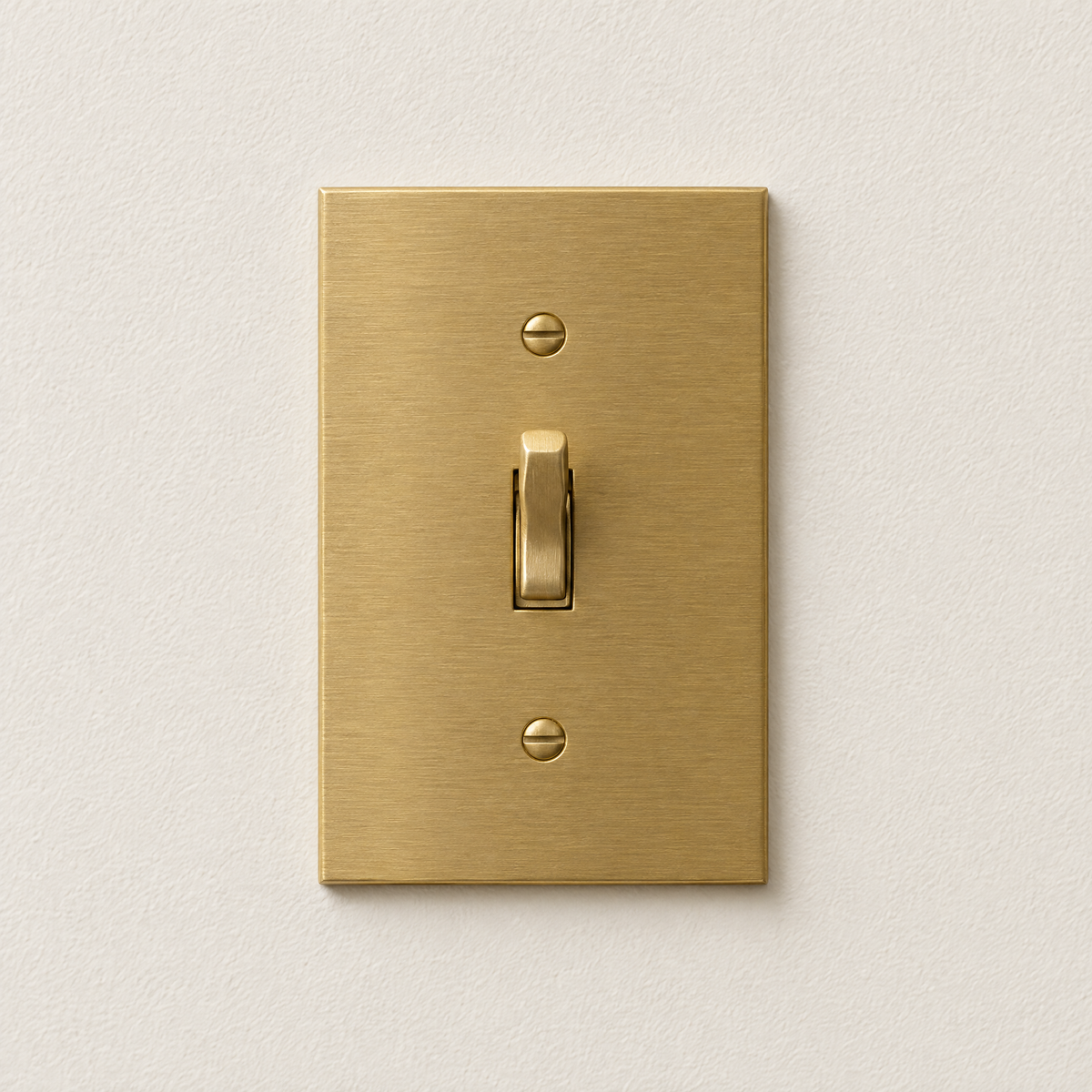

Unlacquered Brass
Raw, uncoated brass. Bright on day one, warm amber where you touch it by year one. For people who want a living finish.
Shop Unlacquered Brass

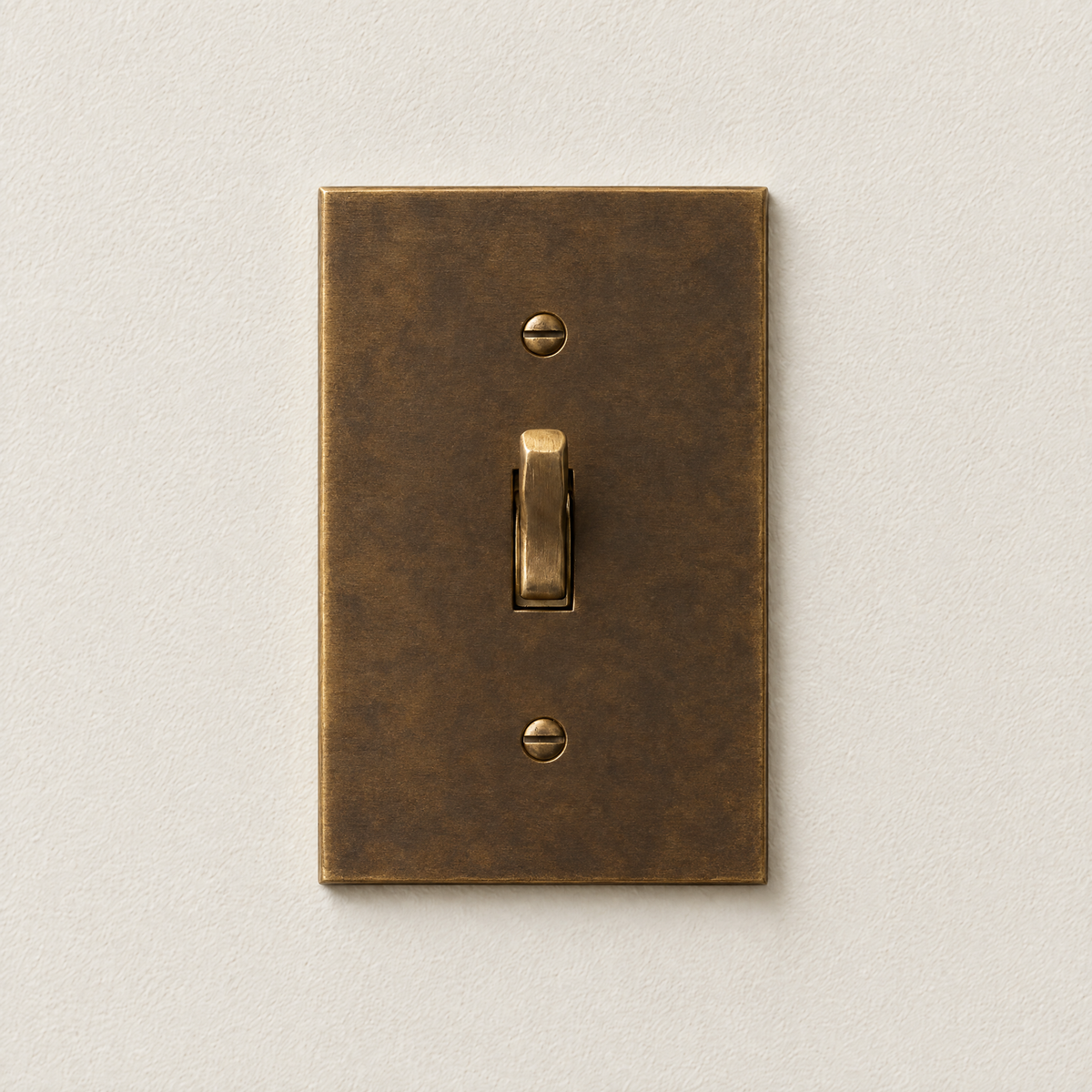

Aged Brass
Hand-darkened, then sealed. The look of thirty-year-old brass, stable from the day it arrives.
Shop Aged Brass

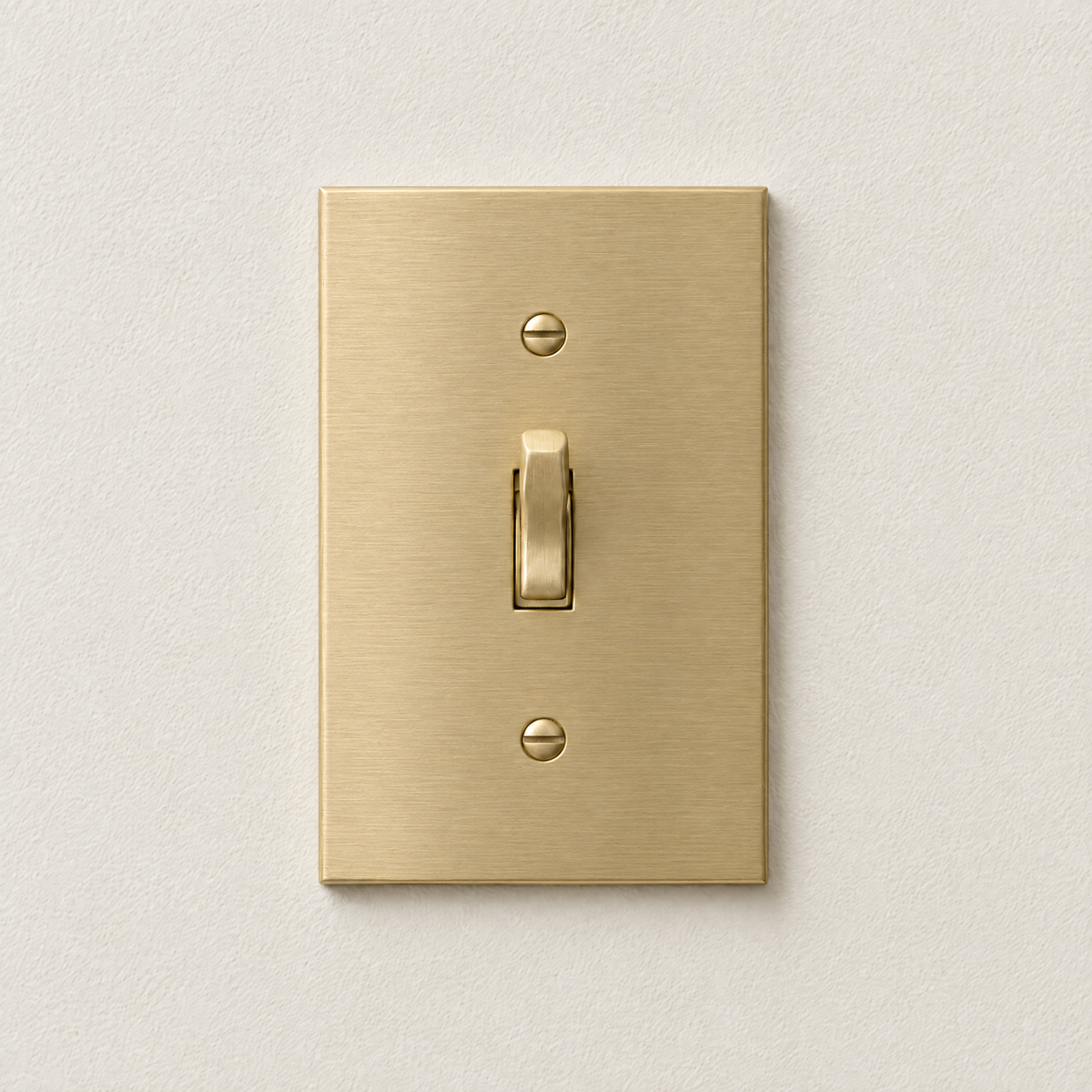

Satin Brass
Brushed and lacquered. Warm, even, fingerprint-resistant. Our most popular finish for kitchens.
Shop Satin Brass
Installation
Wires like the switch it replaces.
Standard US box spacing, standard screws, standard terminals. Any electrician has done this a hundred times, and a confident DIYer can do it in ten minutes with the breaker off. Every order ships with a printed wiring guide, and if your box looks unusual you can email a photo to info@oxidehardware.com before you order.
1. Breaker off, test the circuit. 2. Swap the mechanism, wire for wire. 3. Screw on the brass plate, power on.

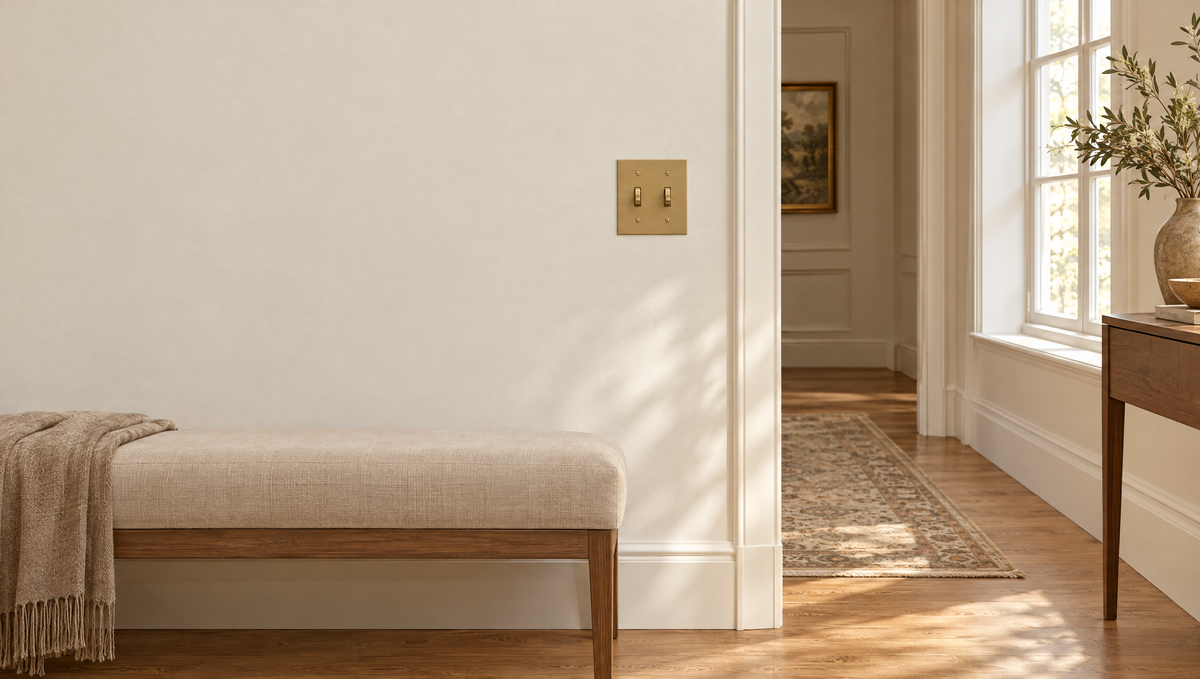

Trade program
Doing a whole house?
Designers, builders and electricians get 10% off every product, volume pricing on larger orders and one contact for the whole project. Send us the switch schedule and we return a priced list, in one finish, the same day.
